20/30/50/100 Watt RGB RGBW DMX DMX512 LED Flood Light

  • 50 watt dmx led flood light
  • DMX RGB RGBW LED Flood Light
  • DMX RGB RGBW LED Flood Light
  • DMX RGB RGBW LED Flood Light

SKU: ZL-FL-JB

Power: 20/30/50/100 Watt.
Using high quality RGB / RGBW LED chips with high brightness, good color effect, low heat and no flicer.
Using strong isolated constant current IC LED driver, working very stably and has long lifespan.
Support multiple color changing effects: Flashing, Strobing, Jumping, Fading, Smoothing, etc.
The whole light is outdoor IP65 waterproof.
Support very narrow beam angles from 5 to 120 degree.
Support DMX function. Customizable wireless solution, RF remote control solution and mobile phone App control solution.
3 Years warranty.

Specifications

Model  No. ZL-FL-JB
Power 20/30/50/100 Watt
Input Voltage AC100-277V
LED Brand EPILEDS
LED Model High Power
CCT RGB / RGBW
Driver Type Isolated Constant Current IC Type
PF >0.95
Materials Die-casting Aluminum + Lens +   Tempered Glass
Beam Angle 5°/10°/15°/30°/45°/60°/120°
IP Rating Outdoor IP65, IK08
Dimension 285*230*180mm
Weight 2.3KG
DMX Function Support
Wireless Function Customizable
Mobile App Control Function Customizable
RF Remote Control Function Customizable
Lifespan 50,000 Hours
Working Temp. -40°C~60°C
Lifespan 50,000 Hours
Warranty 3 Years

Product Show

dmx rgb led flood light 10w 20w 30w 50w
dmx rgbw led flood light 10w 20w 30w 50w
dmx512 rgb led flood light 10w 20w 30w 50w
dmx512 rgbw led flood light 10w 20w 30w 50w
color changing led flood light 10w 20w 30w 50w

Color Changing Effects

Our RGB / RGBW DMX LED flood light supports multiple color changing effects, such as jumping, fading, flashing, strobing, smoothing, etc. If by using with a DMX controller, our lights can generate more complicated color changing effects.

youtube-video-thumbnail

DMX512 Function

Our DMX flood light has built-in DMX512 decoder, it supports standard DMX512 protocol and can work with DMX512 controller directly. You can use our controller, or use your own controller, or buy any other controllers in your local market. If without DMX512 controller, our lights will run the default internal program.

controller
converting-cable

Applications

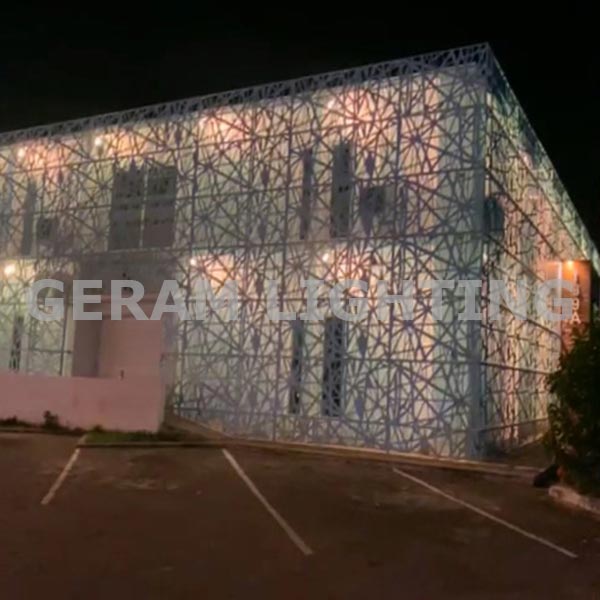

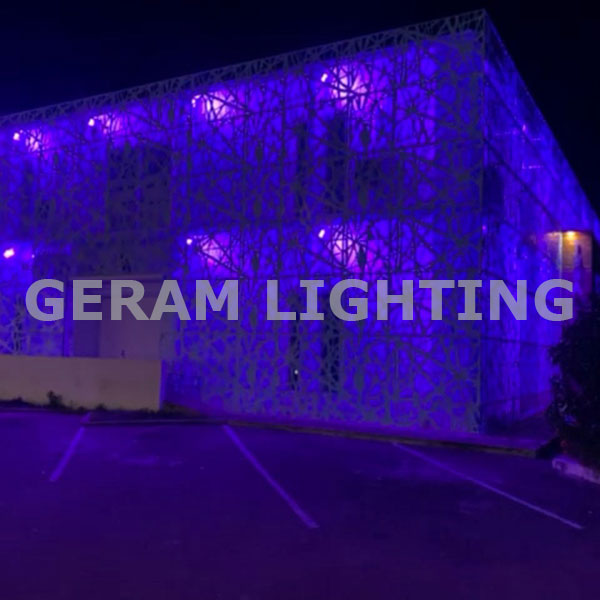

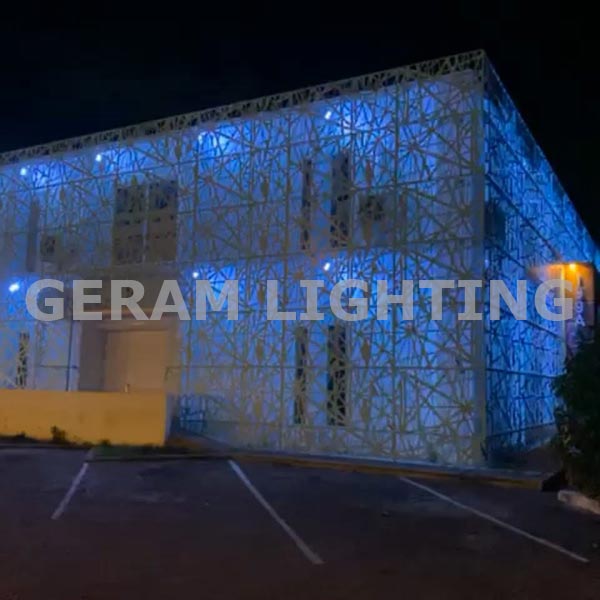

Our RGB / RGBW DMX LED flood light is widely used in commercial building, garden, square, bridge, housing estate, landmark building, amusement park, hotel, tower, church, dock, pitch, etc.

dmx rgb led flood light 10 watt 20 watt 30 watt 50 watt

Installation

Our DMX flood lights has 3 kinds of installation types, one is wired installation, one is wireless installation, one is compatible installation(the combination of wired & wireless solutions).

1. Wired Installation

installation-1

2. Wireless Installation

installation-2

3. Compatible Installation

installation-3

Certificates

Our RGB / RGBW DMX LED flood light has obtained a series of certificates such as CE, EMC, LVD, RoHS and FCC, etc. If you has special requirement, you can also tell us directly.
